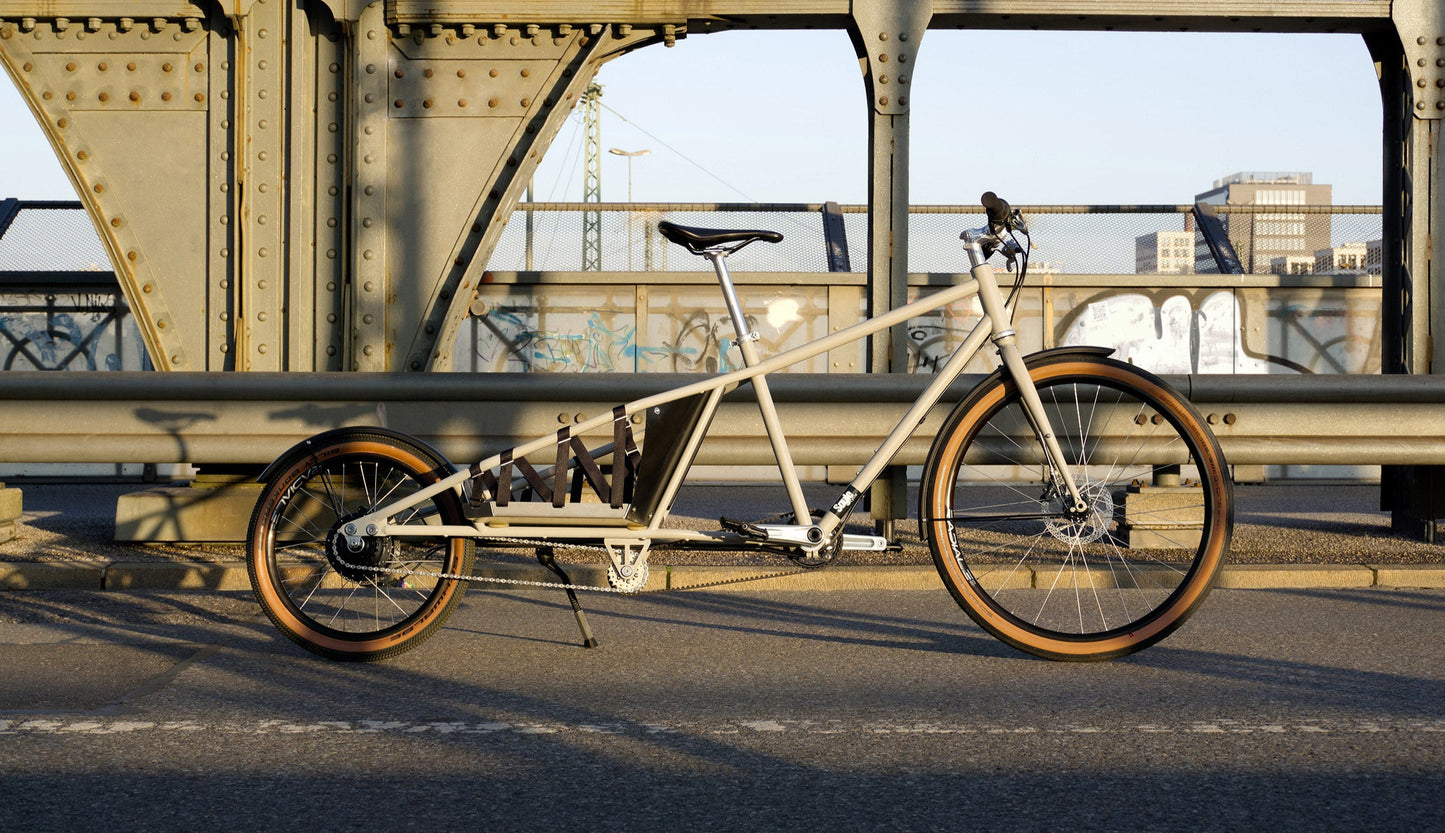

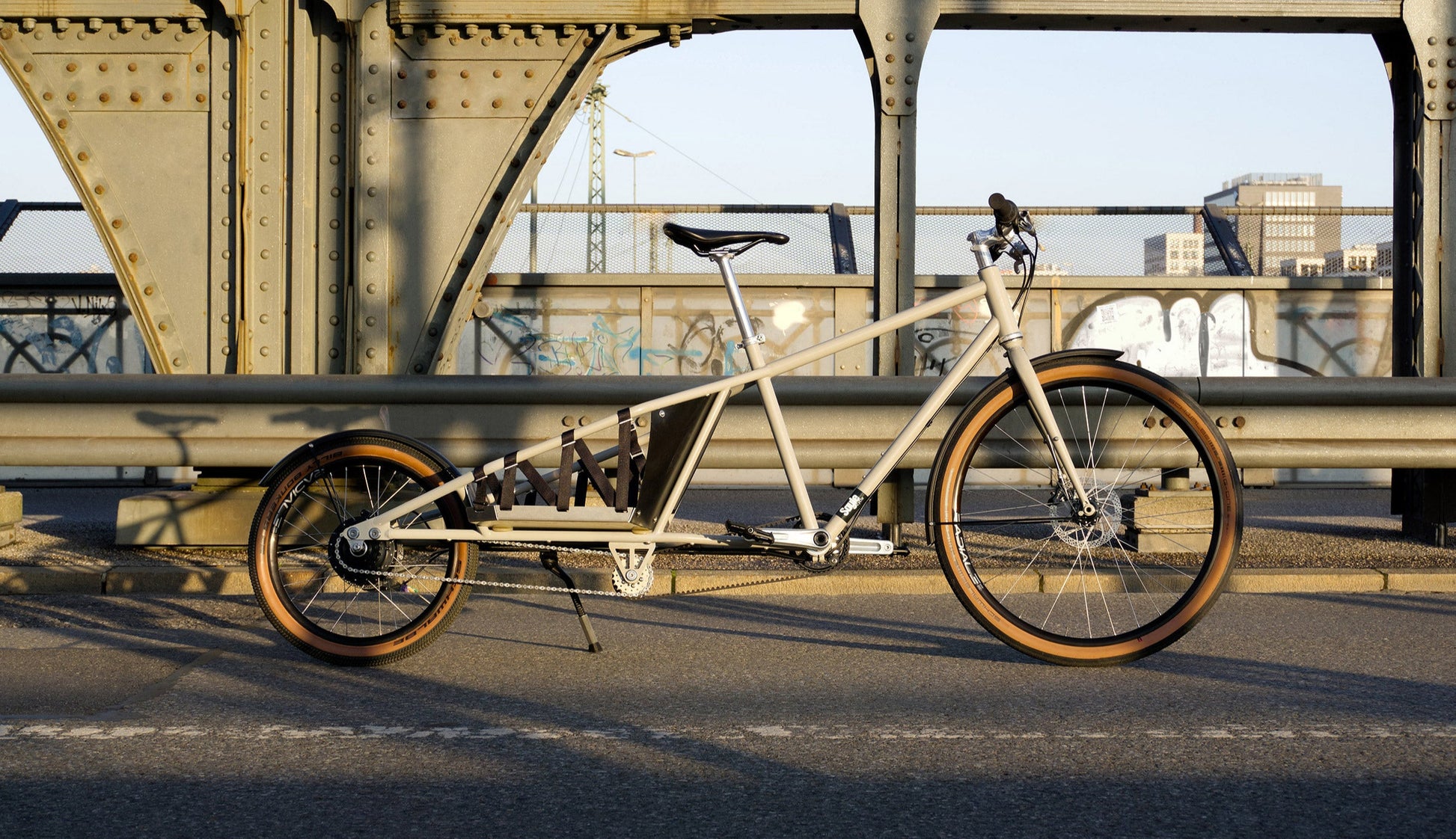

Das SAYLE CYCLE № ist ein Cargobike, ATB, Urbanbike, Commuterbike, Bikepacking-Bike – ein Fahrrad, das in keine feste Kategorie passt. Die Basis unserer Räder ist unser einheitliches Frameset, mit dem du dir durch die entsprechenden Wahl der Anbauteile deinen Wunsch Bike-Charakter baust.

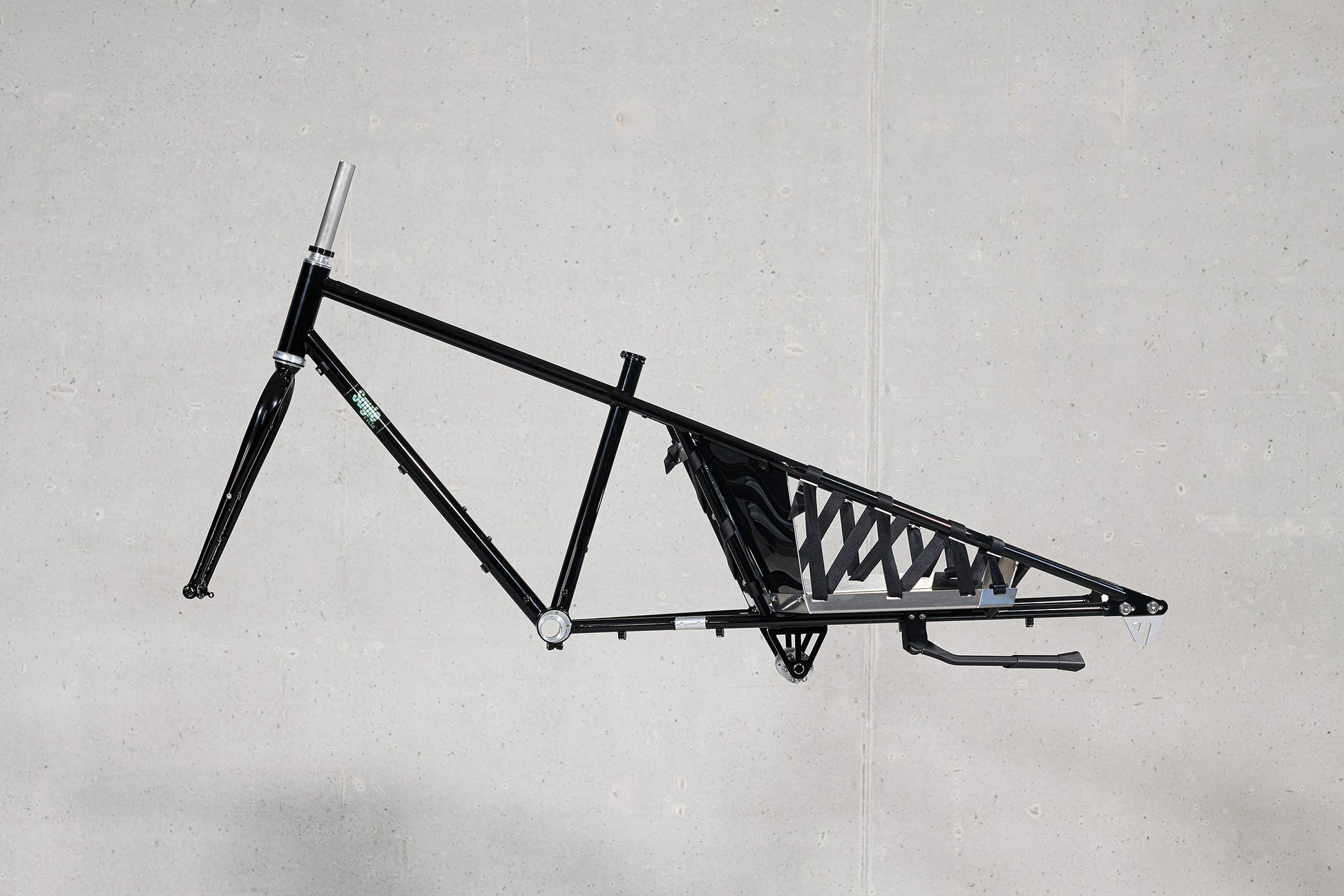

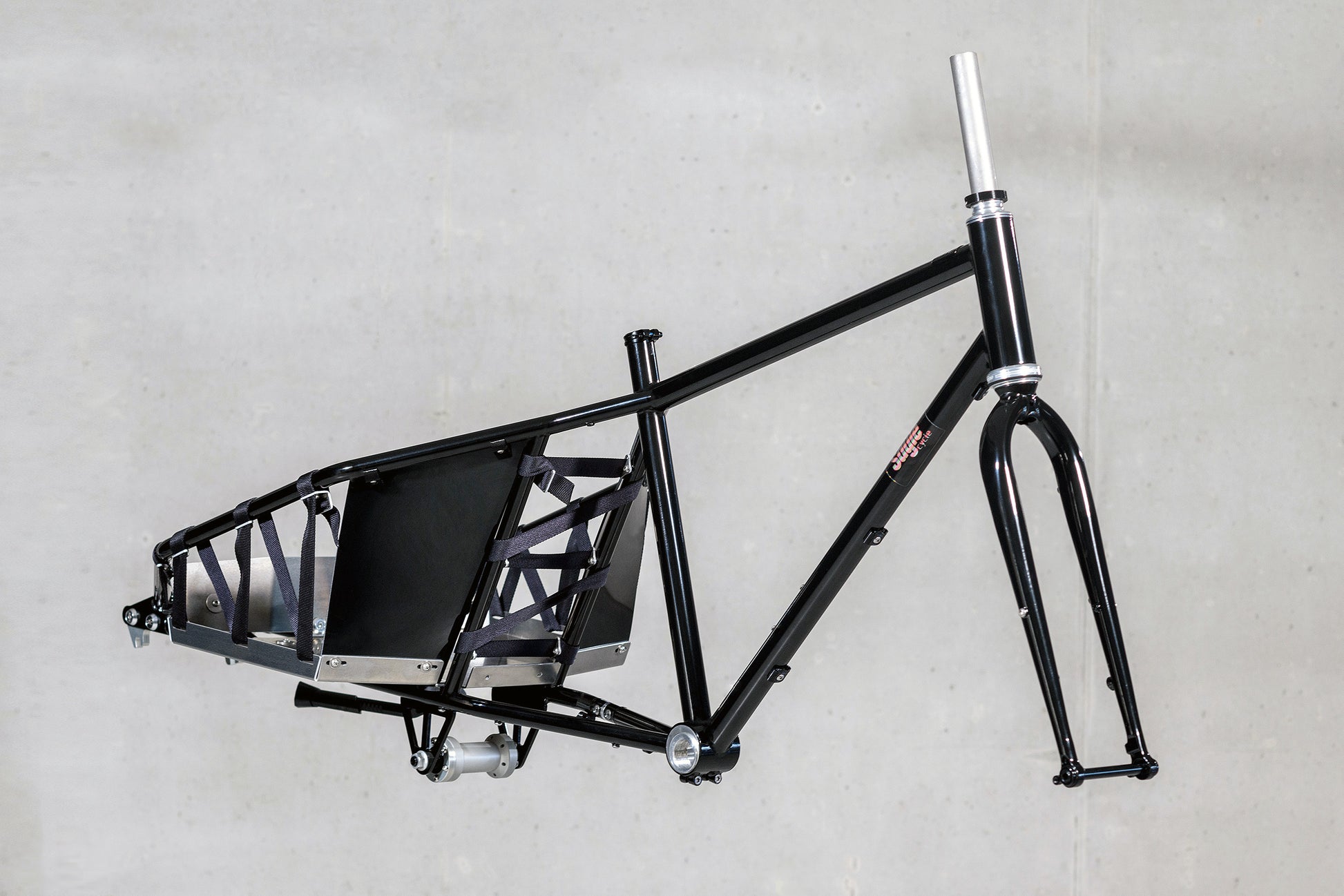

Das № FRAMEKIT wird aus 4130-Chromoly-Rohren in der Nähe von München hergestellt, in deiner Wunschfarbe pulverbeschichtet und hohlraumversiegelt.
Du möchtest dein Framekit von uns, mit deinen Lieblingsparts aufbauen lassen? Dann schau dir unsere Custom-Variante an: → № CUSTOM
Unsere Rahmennummern vergeben wir fortlaufend. Du möchtest eine individuelle Rahmennummer? Dann schreib uns gerne: info@saylecycle.de

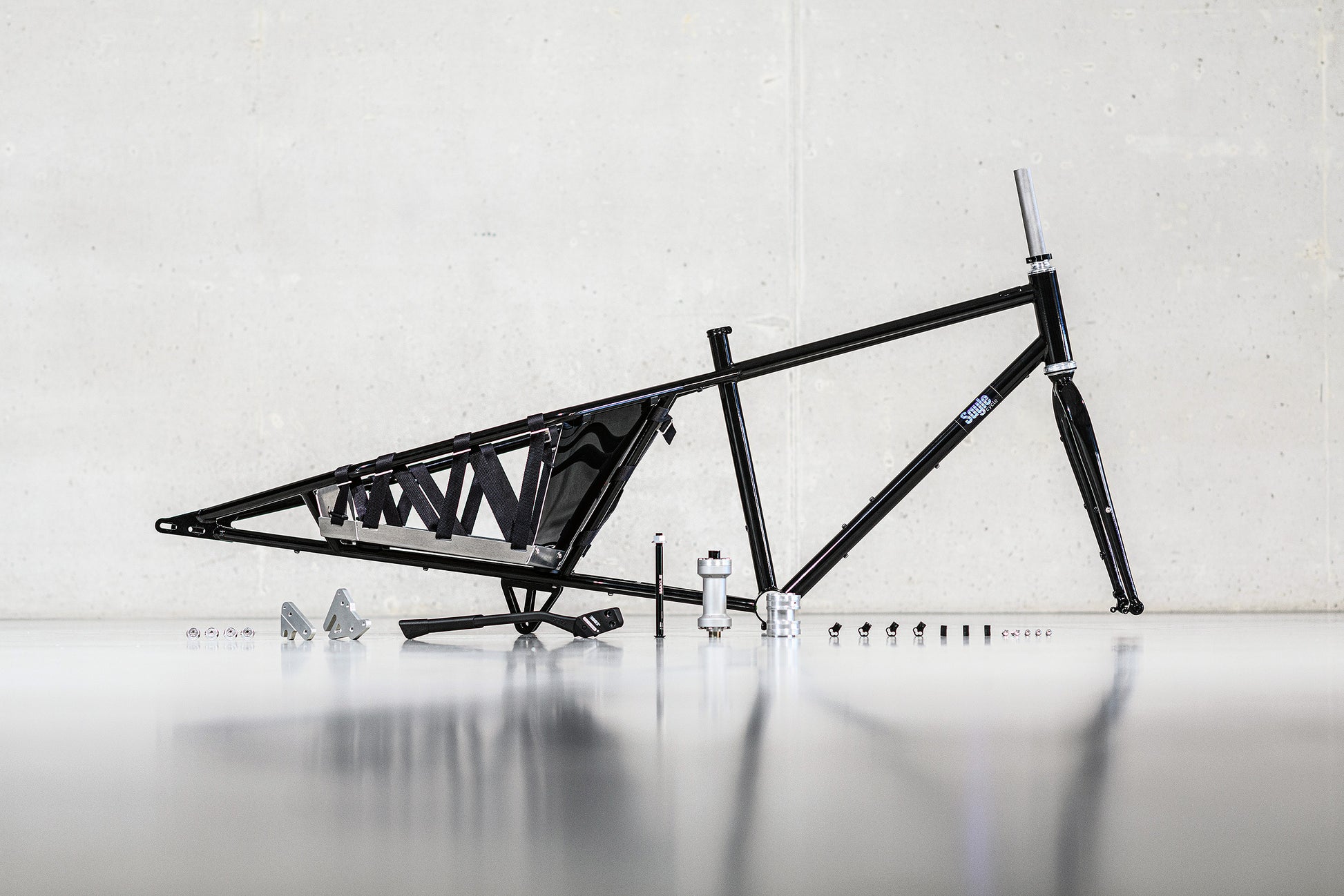

Im Lieferumfang:
- Sayle Cycle №-Rahmen
- Sayle Cycle №-Gabel (insofern ausgewählt) inkl. FlatMount-To-PostMount-Adapter

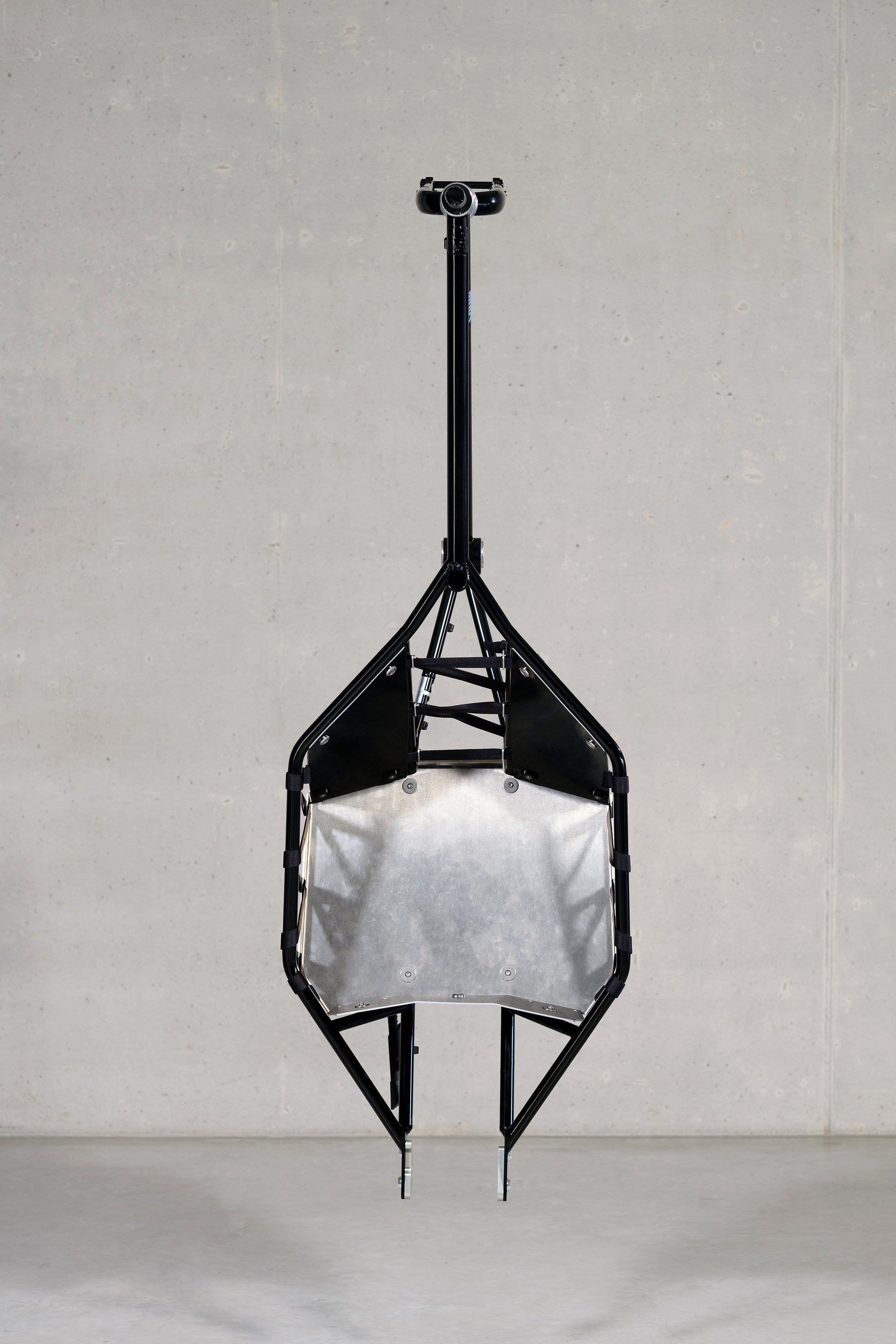

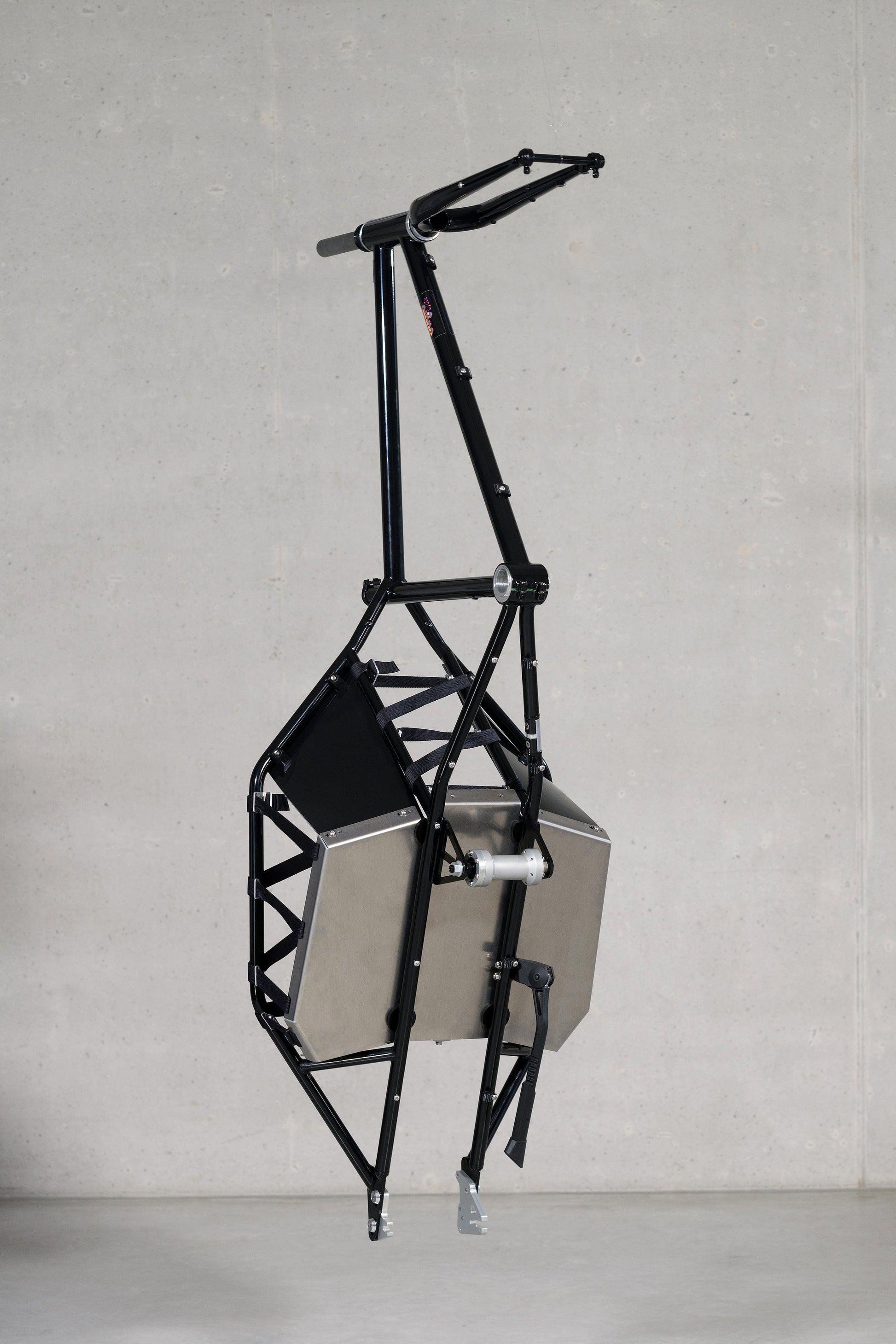

- Ladeflächen-Pritsche inkl. zwei Bordwänden (fertig montiert)
- Gurtband inkl. Rahmenbefestigungen
- Umlenknabe (inkl. 12mm-Steckachse)
- Sliding-Dropouts inkl. Edelstahlschrauben
- stabiler Hauptständer (ESGE Pletscher)
- Adapter-Hülse für die Sattelstütze
- Exzenter für das Tretlager
- 7x Kabelführungen inkl. Edelstahlschrauben
Abbildungen der Rahmen sind symbolisch für die Farben. Weitere Bilder mit entsprechender Farbe folgen.
Geometry
Geometry
Specifications
Specifications
Frame only
Fork
5.68 kg
0.9 kg Material4130 Chromoly Steel Cavity sealed Frame
✔ Stress tested
(DIN 17860-2)✔ passed Approved total system weight168 kg Headset
Upper
Lower(S.H.I.S.)
ZS44
EC44 Seat
Seatpost
Collar/Clamp
Ø 27.2 mm
Ø 31.8 mm Bottom Bracket
BB
Tension
BSA 73 mm Threaded
Eccentric Hub Spacing
Frame
Fork
135 mm Quick Release
12 × 100 mm Through Axle Tire Clearance Max.
Frame
Fork
20 × 2.4" (62—406)
27.5 × 2.3" (57—584) Brakes
Frame
Fork
51 mm I.S. (160 mm max.)
PM adapter (160 mm max.) Dropouts
Frame
Fork
Sliding Vertical Dropouts
12 mm Through Axle Bottle Cage Mount
Frame
1 × Standard Mount Fender Mounts
Frame
Fork
✔
✔ Kick stand2 bolted mount (KSA 18, M6) Compatibility
(incl. Full Cable Routing)Rohloff (CC OEM axle plate)
3x3 NINE Geared Hub
Shimano Alfine 8- & 11-speed
Component Recommendations
Component Recommendations
Front
Back
26" × 2.4" (559—60)
27.5" × 2.0" (584—50)
28" (depending on Tire & Fender)
20" × 2.4" (406—60) Crank Set Lenght
Comment≤165mm
for relief for the knees when bike is fully loaded Stem Lenght
Comment~70mm
Good starting point Drive Train Combinations
Rohloff Speedhub
Primary (Gates)
Secondary (Chain)
3x3 Nine
Primary (Gates)
Secondary (Chain)
Shimano Alfine
Primary (Gates)
Secondary (Chain)
55×22t
22×16t
46×22t
22×24t
55×22t
22×16t
Color Option: Custom*
Color Option: Custom*
We contact you after the order is placed. Choose a color you like from the RAL spectrum in matt or glossy.
Shipping & Delivery
Shipping & Delivery















Primary drive
Eccentric bottom bracket
With the eccentric bottom bracket, which accommodates a 73mm standard BSA threaded bottom bracket, the belt or chains of the primary drive can be tensioned easily and reliably.

Secondary drive
Sliding dropouts
The sliding dropouts allow the belt or chain of the secondary drive to be tensioned. The mount allows the use of gear hubs such as Rohloff Speedhub, 3x3 Nine, Shimano Alfine with 8 or 11 gears or a minimalist singlespeed setup. (With integrated 51 mm I.S. mount for disc brakes with 160 mm max. rotor size).

Versatile transfer hub
The 6-hole mounting of the idler hub allows sprockets for belts or chains to be fitted. The hub is equipped with high-quality, sealed industrial ball bearings from SKF.

Belt-Drive-ready
Frame lock = belt drive
The frame lock allows you to thread in a belt, such as Gates Carbon Drive.

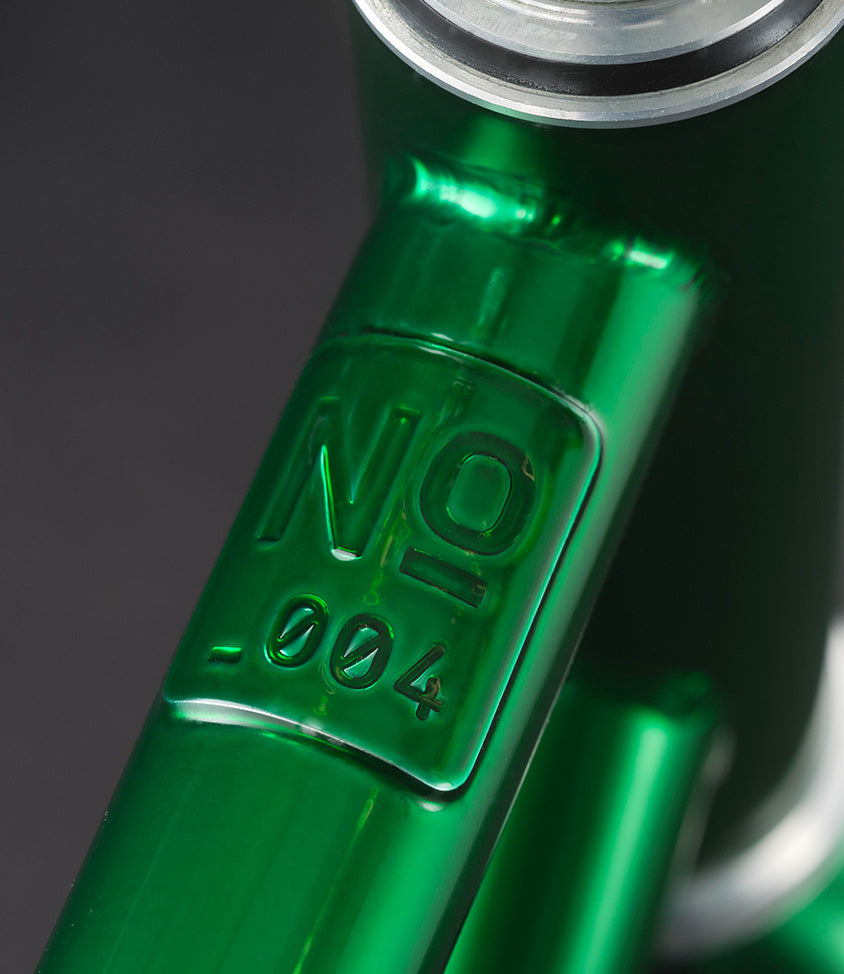

Numbering instead of name
Each frame is numbered and unique. The serial number welded onto the top tube is inseparably linked to the frame and makes each frame unique. In the event of theft, the frame can be clearly traced.

Hoses & cables external
All cables and hoses are routed on the outside of the frame, which has some decisive advantages:
- Maintenance/replacement of cables and trains is significantly simplified
- the weight of the frame is reduced
- the penetration of water and moisture into the inside of the frame is prevented and oxidation (rust) is prevented

№ branding
Removable decals
You don't want to drive a billboard? No problem! The logo stickers on our frames are deliberately removeable without leaving any residue. This makes your frame purist and gives it an even cleaner look.
